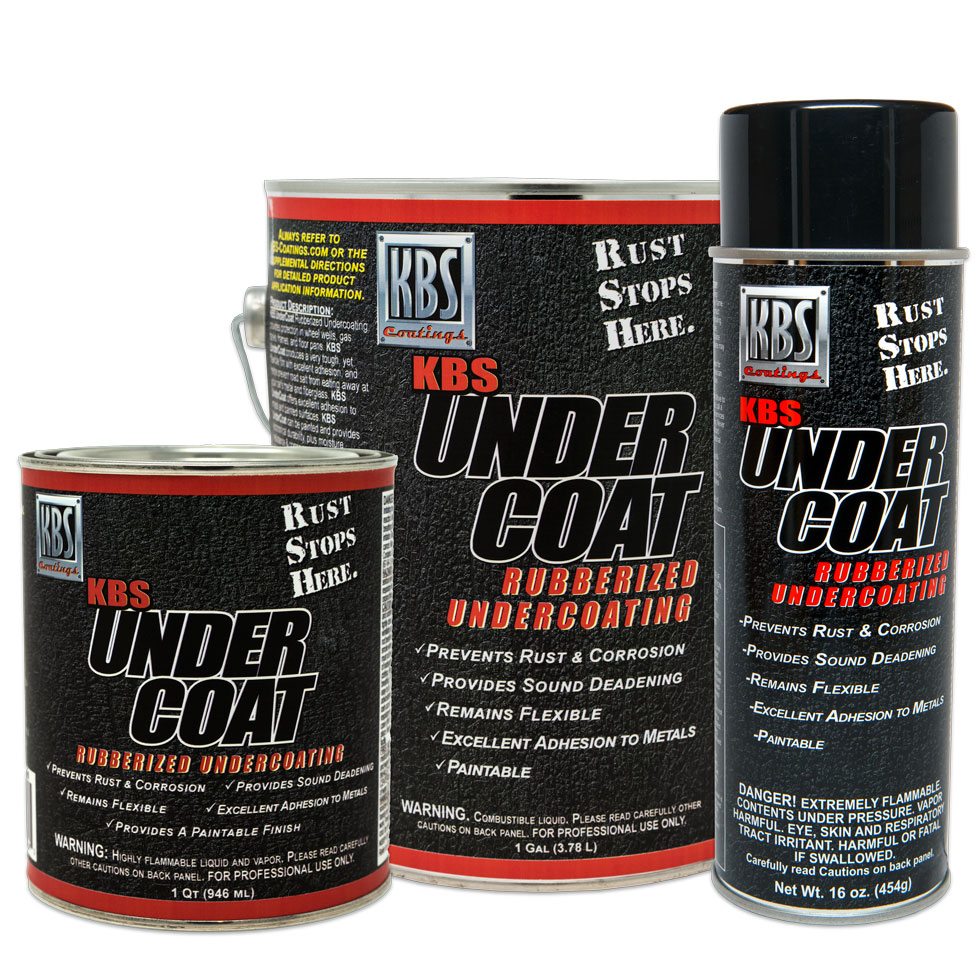

KBS UnderCoat - Durable, Sound Deadening Rubberized Undercoating

• Wheel wells — blocks road salt and gravel impact that erode factory coatings over time.
• Frames and undercarriages — seals boxed rails and cross members against moisture that collects and causes rust from the inside out.
• Gas tanks — adds an exterior rust and abrasion barrier on top of the tank shell.

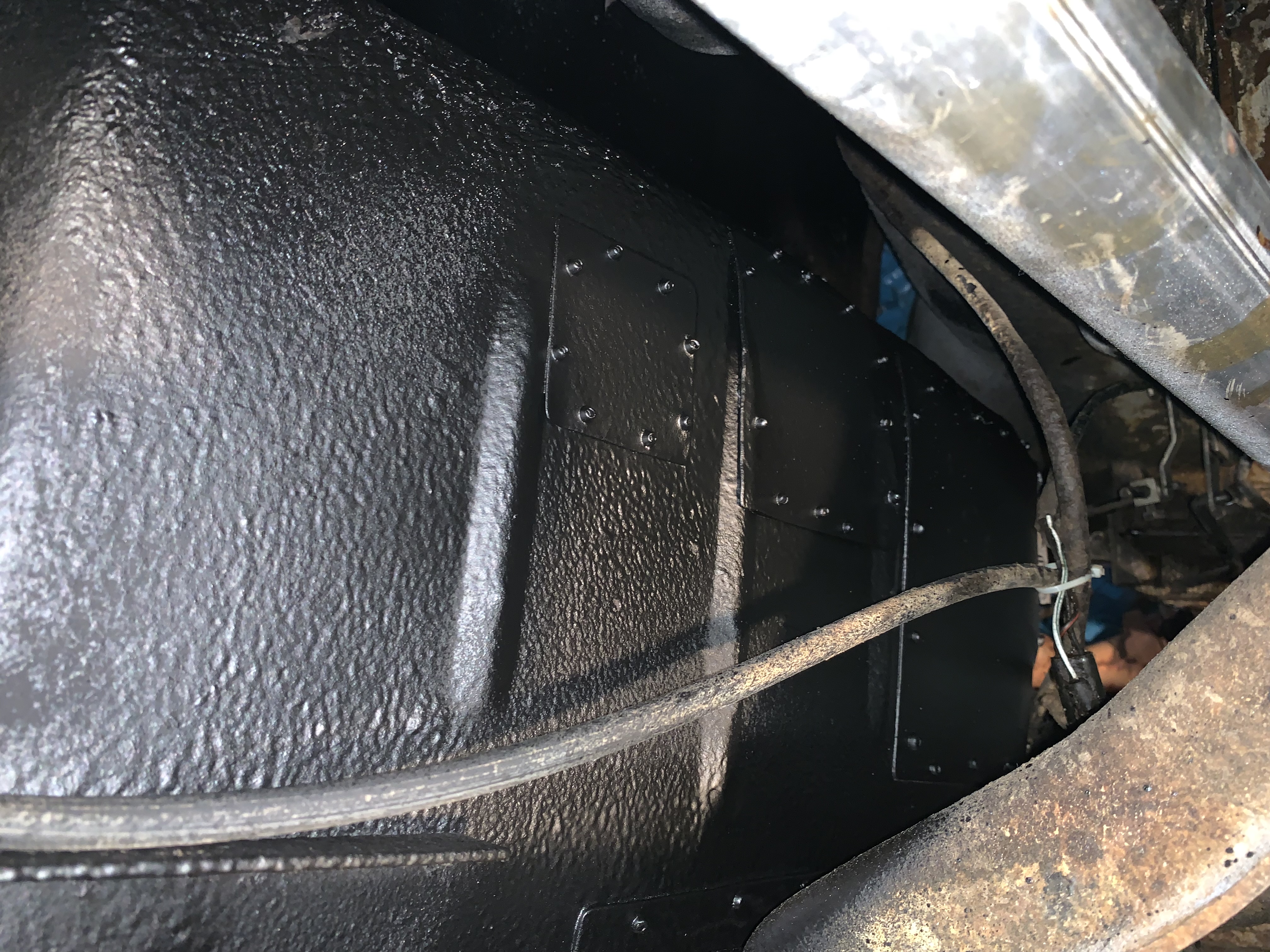

• Floor pans and rocker panels — protects the metal most exposed to standing water and undercarriage spray.
• Quarter panels, fenders, hoods, decks — suitable anywhere sound deadening and chip resistance matter as much as rust protection.

• Sound deadening: Reduces road noise and vibration transmitted through the floor pan and wheel wells.
• Chip resistant: The cured film resists stone chipping and gravel impact on the underside of the vehicle.
• Excellent adhesion: Bonds to bare metal and to painted surfaces without a separate primer coat.

• Paintable: Accepts a color-matched top coat once fully cured, for areas where matte black is not the final look wanted.
• Fast handling: Dry to the touch in 60 minutes and handleable within 2 hours of the last coat.
• Moisture and corrosion resistance: The flexible film resists cracking with vehicle flex while keeping water and road salt off the metal.

• Multiple application methods: Sprays from the aerosol can, from bulk sizes with a Schutz-type gun, or applies by brush or roller.
• Economical bulk sizing: Available from a 13 dollar aerosol up to a 55-gallon drum for shops running high volume.
• Uniform matte black finish: Consistent appearance coat to coat, without the mottled look some rattle-can undercoatings leave.

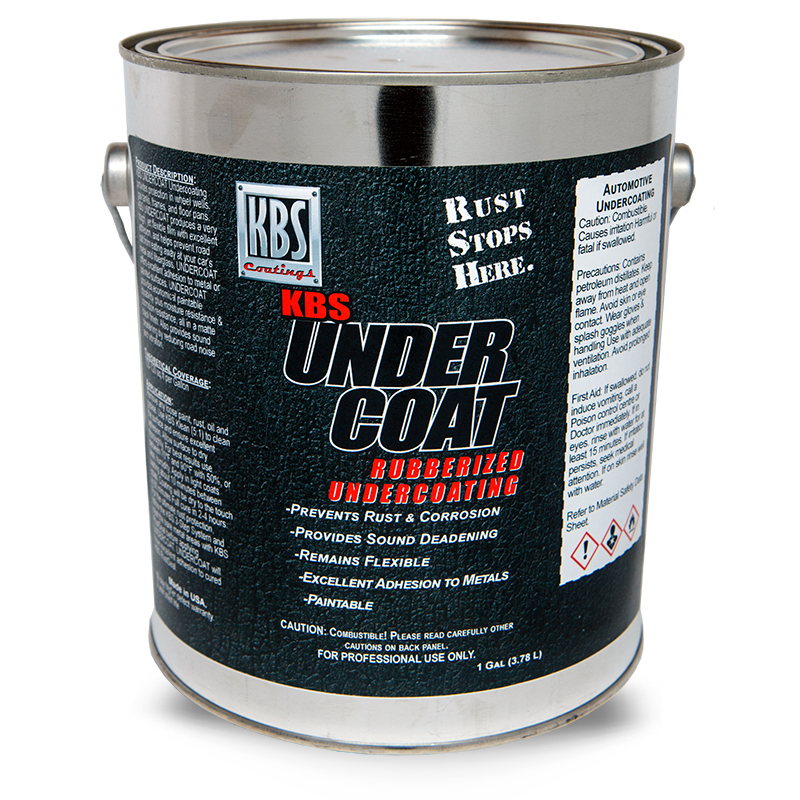

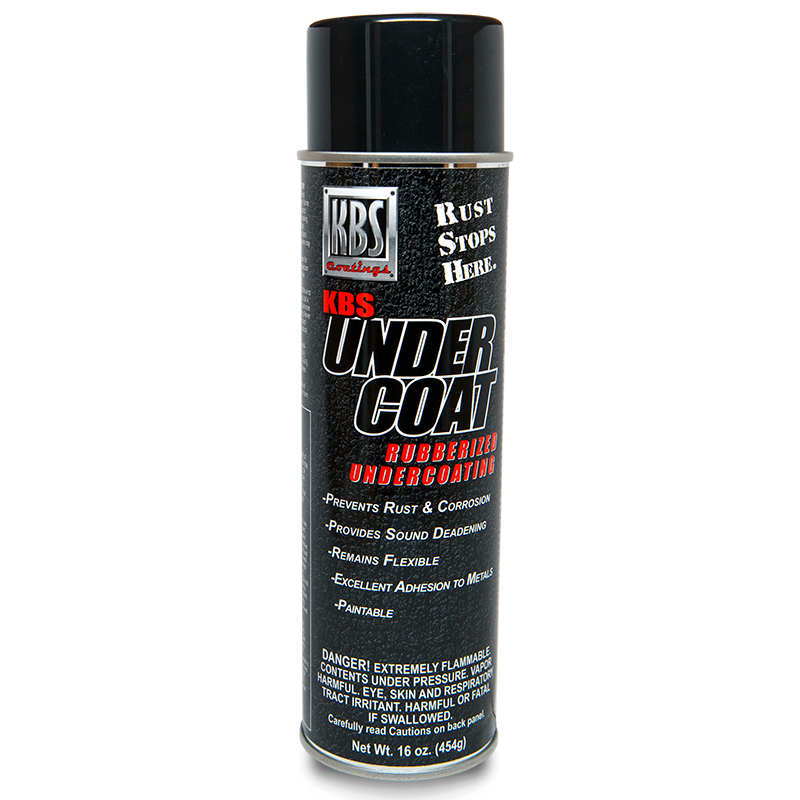

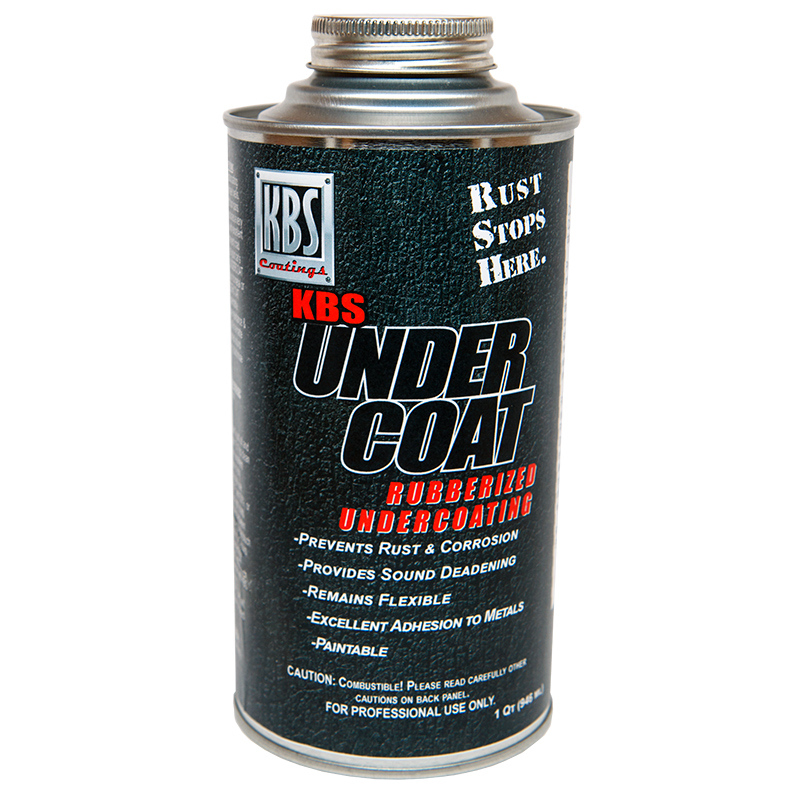

A gallon of KBS UnderCoat covers 100 to 120 square feet on a smooth surface, and coverage scales down proportionally through the smaller sizes: 25 to 30 square feet from a quart, 16 to 20 square feet from an aerosol can.

Recoat window: wait about 10 minutes between aerosol coats, or 2 hours between brush/roll coats. A second brush/roll coat can be top coated after 24 hours.

After KBS UnderCoat: Building the Full Rust Prevention System

KBS UnderCoat is one layer in a complete underbody protection system. For bare or rusted metal, treat it first, then add UnderCoat for sound deadening and chip resistance.

Step 1 — KBS Klean

Degreases and cleans the surface so later coats bond properly.

Step 2 — RustBlast

Neutralizes existing rust and etches bare metal for adhesion.

Step 3 — RustSeal

Seals bare or treated metal permanently against moisture and oxygen.

Then — KBS UnderCoat

Adds the rubberized, sound-deadening top layer once RustSeal is cured.
